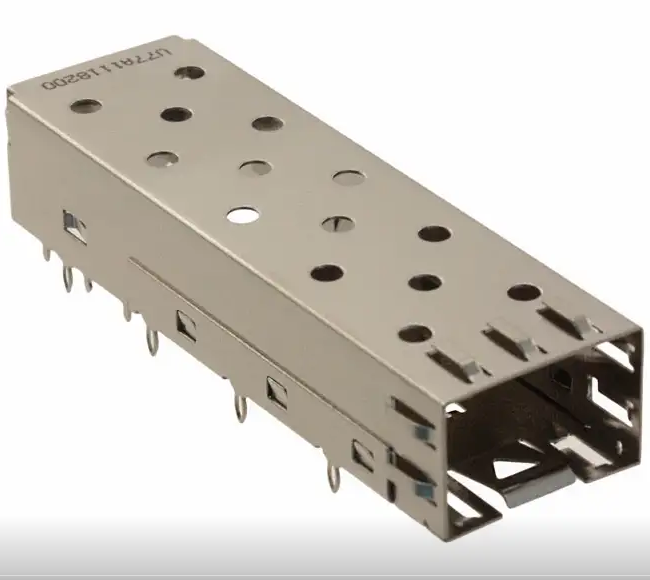

Amphenol ICC UE75系列 UE75-A20-3000T 配套U77-A1118-200T SFP, 插座
Amphenol ICC UE75系列 UE75-A20-3000T 配套U77-A1118-200T SFP, 插座
產品描述
產品概述
The UE75A203000T is a SFP standard Interconnect System with gold-plated copper alloy contacts and UL94V-0 rated glass reinforced, lead-free solder reflow process compatible thermoplastic housing. This interconnect system consists of a 20-position connector enclosed in a metal cage mounted to a host PCB. The single-port SFP connector is rated up to 6Gbps. The connector accepts multiple transceivers per INF-8074i and combines, transmits and receives functions in a compact and flexible format.
Hot swappable
3.3V Operating voltage
0.5A Operating current
300VAC Dielectric withstanding voltage
1000MR Minimum insulation resistance
70mR Maximum contact resistance
250 Mating cycles minimum durability
應用領域：工業
系列產品如下：
U77-A1113-1001
U77-A1114-100T
U77-A1114-30L1
U77-A1118-200T
U77-A2110-1001
U77-A2114-1001
U77-A2114-200T
U77-A4110-1001
U77-A4110-2001
U77-A4114-2001
U77-A6114-2001
U77-C4110-1011
U78-B1126-00121
U78-B1126-00221
U78-B4126-00121
U86-D2127-10121
U86-D4127-10121
U86-D6127-10121
UE75-A20-3000T
UE75-A20-6000T
